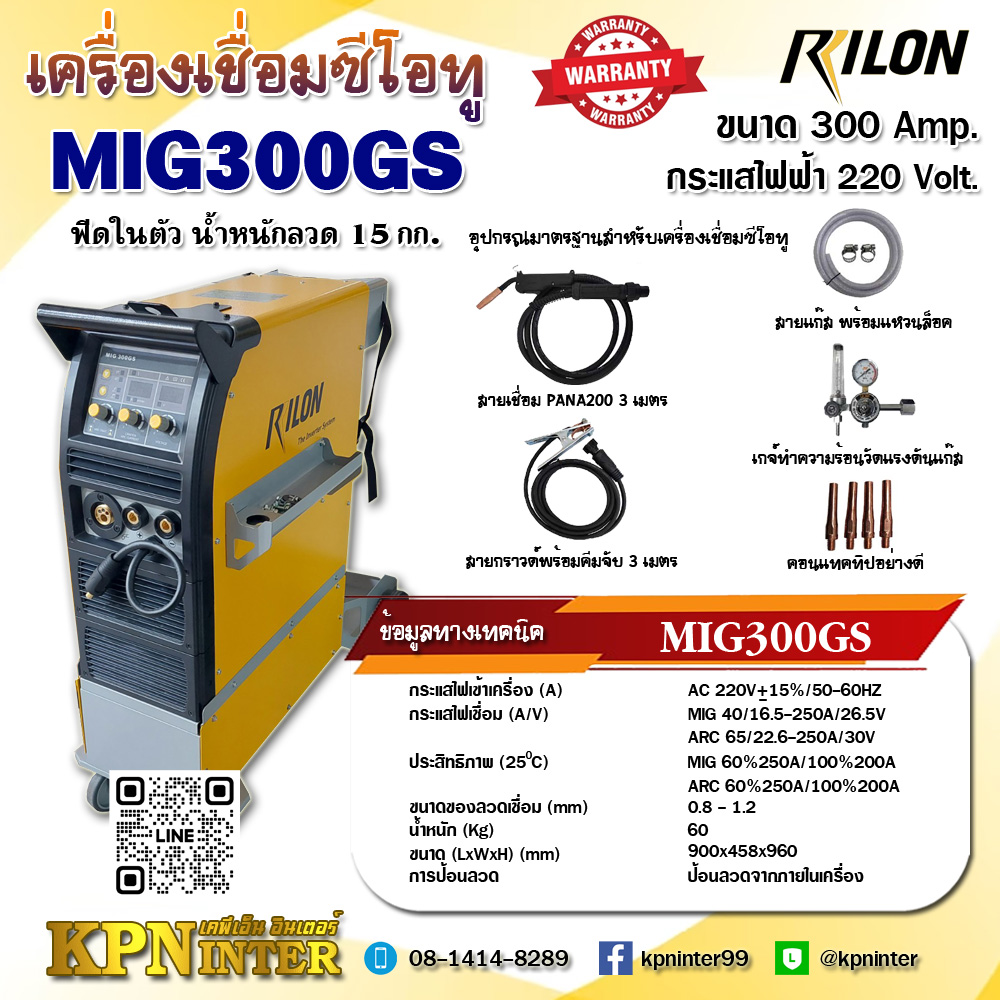

TECHNICAL DATA / ข้อมูลทางเทคนิค MIG300GS
|
| Input Voltage (V) | Single Phase AC220 +15% | 3 Phase AC380 +15% |
| Frequency (HZ) | 50/60 |
| Rated Input Current (A) | 47 (MIG) / 52 ARC | 29 (MIG) / 32 ARC |
| Rated Input Power (KVA) | 10 (MIG) / 11.5 (ARC) | 19 (MIG) / 21 (ARC) |
| Output Current (A) | 40-250 (MIG) / 65-250 (ARC)
| 50-300 (MIG) / 70-300 (ARC) |
| Output Voltage (V) | 16.5-26.5 (MIG) / 22.6-30 (ARC) | 16.5-29 (MIG) / 22.8-32 (ARC) |
| Open Circuit voltage (V) | 56 |
| No Load Voltage (W) | 60 |
| Feeding Speec Adjustment (m/min) | 1.5-13 | 2-15 |
| Duty Cycle (25OC) | MIG 60% : 250A, 100% : 200A | MIG 60% : 300A, 100% : 250A |
| ARC 60% : 250A, 100% : 200A | ARC 60% : 300A, 100% : 250A |
| Power Factor | 0.77 | 0.93 |
| Efficiency | 85% |
| Housing Protection Garde | IP21 |
| Insulation Class | F |
| Weight (kg) | 60 |
| Dimension (LxWxH) | 900x458x960 |
| Inside wire feed (mm) | 0.8 / 1.0 / 1.2 |
| Diameter of Rod (mm) | 2.6-3.2 mm. |
| Key inverter Component | Advance IGBT |
